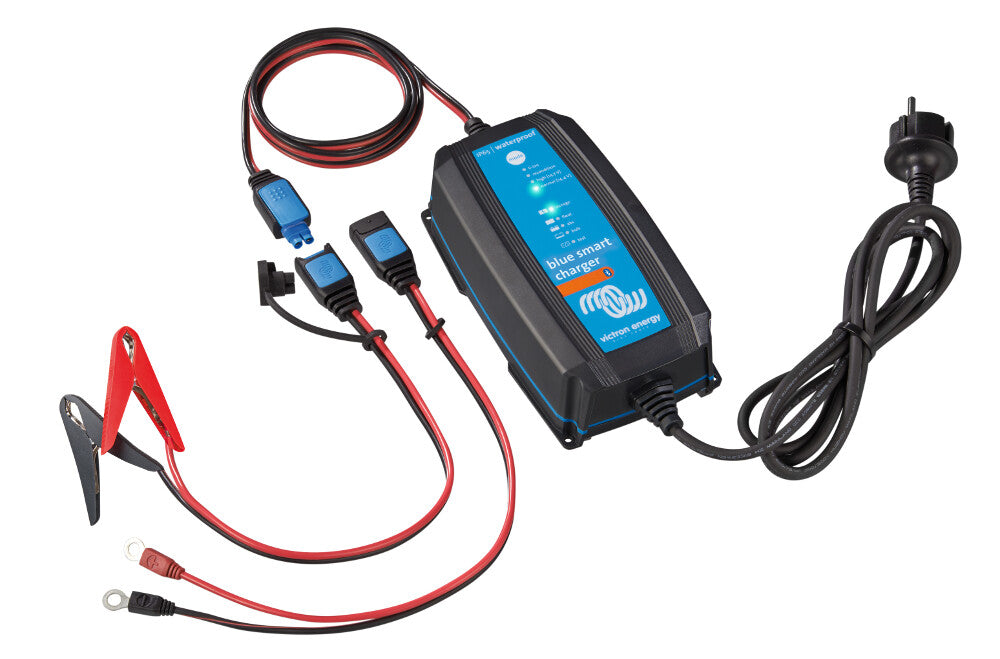

Victron Blue Smart IP65 Battery Charger Bluetooth 24/5 +DC Cable

Powerful Victron battery charger for 24V batteries with wireless monitoring function

Ready for Bluetooth Smart
The Blue Smart IP65 battery charger is the wireless solution for monitoring voltage and current, adjusting settings and updating the charger when new functions become available.
Simply download the app to your smartphone and connect to the battery charger via Bluetooth.

Practical connection cables included
Batteries can be easily connected with the included cables.
You can either use the practical crocodile clips or connect the battery with the M8 eyelets.

The VictronConnectApp
Set, view and configure your Blue Smart IP65 charger using your smartphone. With the VictronConnect App, you can view the status of your charger and battery and even control the functions of your charger. By default, the voltage and current are shown on the screen.

High efficiency
With an efficiency of up to 94%, these chargers generate up to four times less heat compared to the industry standard. Furthermore, once the battery is fully charged, power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.

Adaptive 6-stage charging algorithm: Test - Bulk - Absorption - Recondition - Float - Storage
The Blue Smart charger is characterized by its microprocessor-controlled, “adaptive” battery management. “Adaptive” means that the charging process is automatically adapted to the type of battery use.

Storage mode:
Less maintenance and aging when the battery is idle:
Storage mode is activated whenever no discharge has occurred within 24 hours. The float voltage is then reduced to 2.2V/cell (13.2V for a 12V battery) to minimize gassing and thus prevent corrosion of the positive plates. Once a week, the voltage is increased to the gassing voltage level. This achieves a kind of equalization charge, which prevents electrolyte stratification and sulfation - the two main reasons for premature battery failure.

Also charges lithium-ion (LiFePO4) batteries
LiFePO4 batteries are charged with a simple constant current phase - constant voltage phase - float voltage phase algorithm.

The NIGHT and LOW settings
If the device is in NIGHT or LOW mode, the output current is reduced to a maximum of 25% of the nominal output and the charger operates completely silently. NIGHT mode ends automatically after 8 hours. LOW mode can be ended manually.

Overheat protection The output current is reduced if the temperature rises to up to 50°C, but the Blue Smart charger does not fail.

Technical data:
