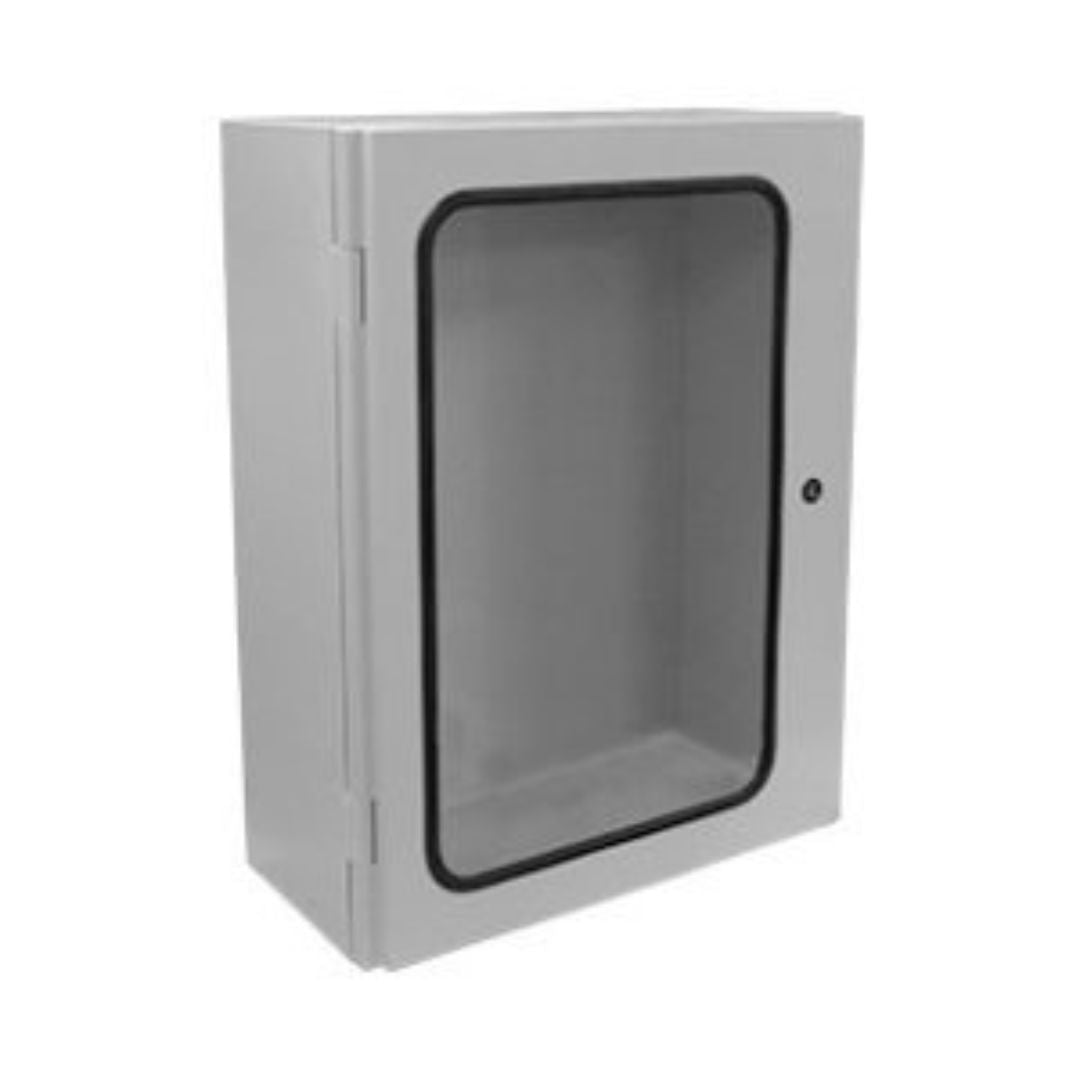

TecnoMatic IPA-641 Fiberglass Panel Enclosure (16x24x9) - Clear Window Door

TecnoMatic IPA-641 Fiberglass Panel Enclosure

IPA fiberglass panel enclosures are designed for industrial applications, public lightings and road, outdoor installations, corrosive environments, and they do not need any maintenance.

The boxes are watertight IP66, total insulated, made by reinforced polyester and they are available with plain door or transparent door, from 315x215mm to 1035x835mm
dimensions. All enclosures can be equipped with metal or pertinax back plate, inner door, modular lids, mounting frame with DIN rows, key lock, ventilation accessories.

Features:

• Protection degree: IP66

• Total insulation: class II

• Rated insulation voltage (Ui): 1000V

• Structure: hot molded, glass fiber reinforced polyester, dyed in mass (25%), self extinguishing and halogen-free, cabinets are maintenance free and corrosion resistant
• Resistance to impact: IK10 with blind door, IK07 with transparent door

• Color: Grey RAL 7035

• Working temperature: -50 +70°C (150°C peak)

• Key lock: included (optional with key)

• Standards: EN 60439-1, EN60529, EN62208

• Approvals: UL, CSA

Specifications:

Height: 23.62"

Width: 15.75"

Depth: 9.05"

Accessories:

Deadfront

Metal Back Panel
