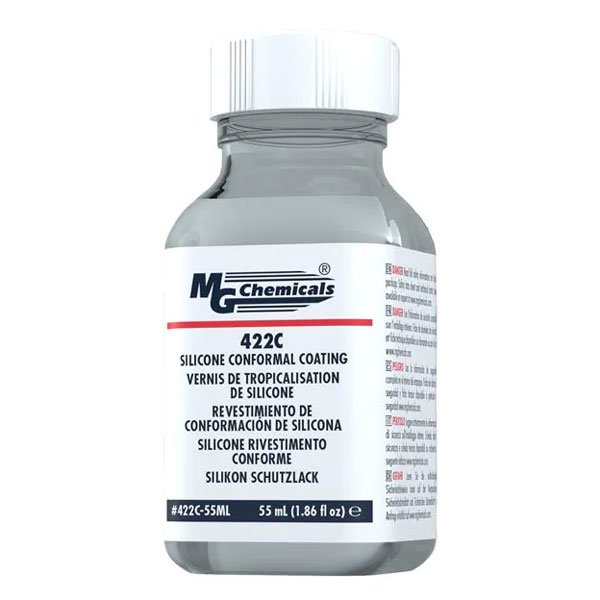

MG Chemicals 422C Silicone Conformal Coating 55mL

Overview

422C is a 1-part, acrylic-silicone blend conformal coating that cures to a durable, flexible and smooth finish. It is easy to apply and can be handled in only 10 minutes. It may be removed with appropriate strippers or soldered through for repair or rework.

422C is designed for applications where both high service temperature and flexibility are required. It puts minimum stress on components during thermal cycling, making it ideal for applications that involve a wide temperature range. It provides strong protection against moisture, corrosion, fungus, dirt, dust, thermal shock, short circuits, high-voltage arcing, and static discharge.

Features

• Certified UL94 V-0 (File# E203094)

• Maximum service temperature of 200 °C

• Fast cure – tack free in about 10 min; dries in 20 min at 65 °C [149 °F]

• Fluoresces under UV-A light

• Validated for selective robotic coating equipment

• Corrosion resistant

Technical Data

• Net Volume: 55ml

• Net Weight: 50.7g

• Packaging: Bottle

Resources
