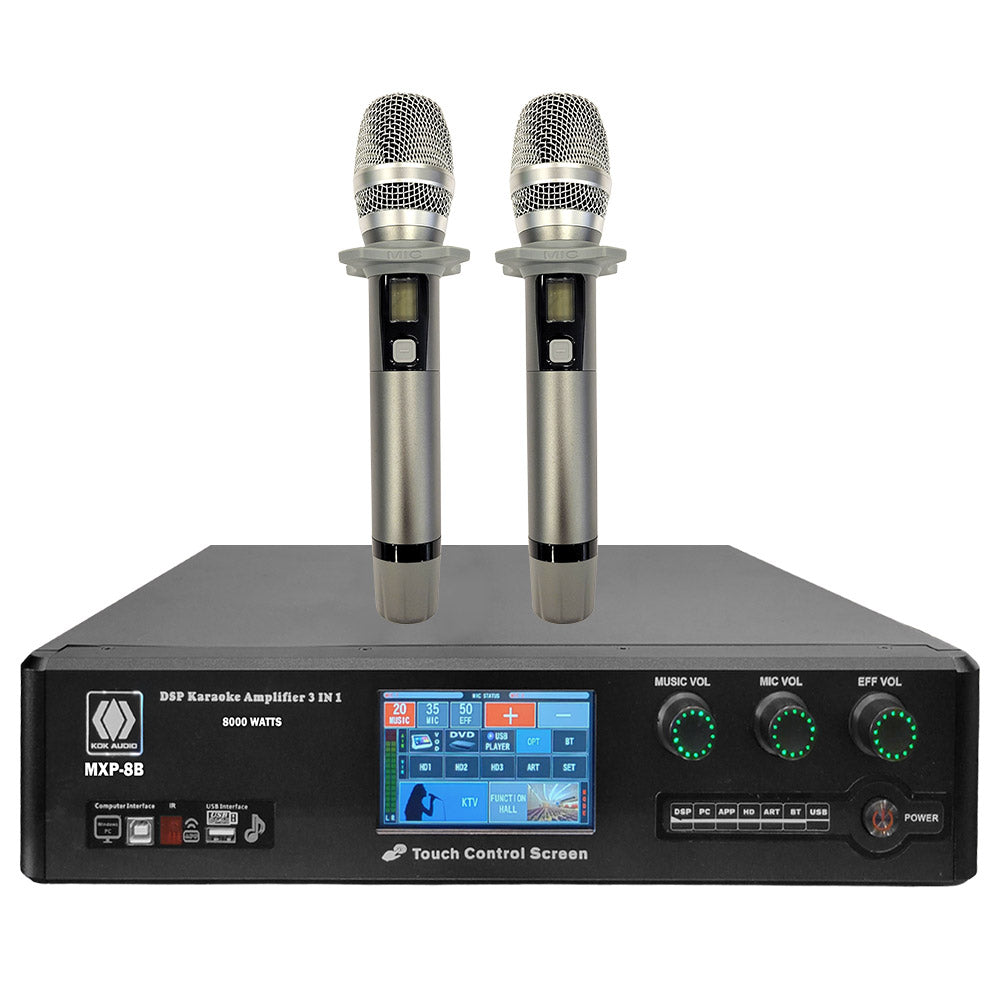

KOK Audio MXP-8B 8000 Watt DSP Karaoke Microphone Mixing Amplifier 3 in 1

KOK Audio MXP-8B – DSP Karaoke Amplifier (3-in-1)

The KOK Audio MXP-8B is a high-performance DSP karaoke amplifier designed for powerful sound output and flexible entertainment setups. It integrates amplification, digital signal processing, and wireless microphone reception into one all-in-one system, making it suitable for home karaoke, KTV rooms, and small professional venues.

Key Features

• 3-in-1 design: Amplifier + DSP processor + wireless microphone receiver
• High power output: Up to 8000W peak, delivering strong, dynamic audio performance
• Touch control screen: Intuitive interface for adjusting music, microphone, and effects
• DSP sound processing: Built-in EQ, echo, and reverb tuning for customized vocal performance
• Multiple sound modes: Includes KTV, singer, professional, and magic modes for different usage scenarios
• Wireless microphone system: Stable signal with adjustable frequency and channel selection

Connectivity & Inputs

• HDMI (ARC + multiple inputs): Connect TVs and media devices
• Bluetooth streaming: Wireless audio playback from mobile devices
• USB & MP3 playback support
• Optical (OPT), DVD, VOD inputs
• Microphone inputs (MIC 1 / MIC 2 + wireless)
• Multiple outputs: L/R main, center, and subwoofer outputs

Audio Performance

• Frequency response: 20 Hz – 20 kHz
• Signal-to-noise ratio: > 96 dB
• Low distortion (THD): < 0.1%
• High damping factor: 400:1 for improved speaker control
• Crosstalk: > 65 dB @ 1 kHz

Control & Usability

• Front panel includes:
  • Touch display
  • Music, microphone, and effect volume knobs
  • USB and MP3 interfaces
• Remote control included for easy operation:
  • Input selection, volume adjustment, EQ modes, tone control, and playback functions
• Customizable DSP settings:
  • Independent music, mic, and effect levels
  • EQ tuning and vocal effects (echo/reverb)

Microphone System

• Digital frequency control for stable wireless transmission
• LCD display on microphone for status and frequency
• Adjustable channel and tone controls
• Long working time with AA batteries and low-battery indication

Applications

• Home karaoke systems
• KTV rooms and lounges
• Party and event setups
• Small stage or entertainment venues

Summary

The MXP-8B stands out as a powerful, feature-rich karaoke amplifier with higher output power than entry models, advanced DSP tuning, and wide connectivity. It’s built for users who want strong sound performance, flexible inputs, and professional-level karaoke effects in a single device.

• Model: MXP-8B
• Output power (RMS): 8000 WATTS PEAK
• Inputs: 0.775 Vrms / 1.2 Vms
• Frequency response: 20–20000 Hz (0.3 dB)
• Slew rate: 50 V/µs
• Damping factor: 400:1
• Crosstalk: > 65 dB @ 1 kHz
• S/N: > 96 dB
• THD-N: < 0.1%, 1 kHz
• IMD: < 0.2%, 1 kHz @ 1 W
