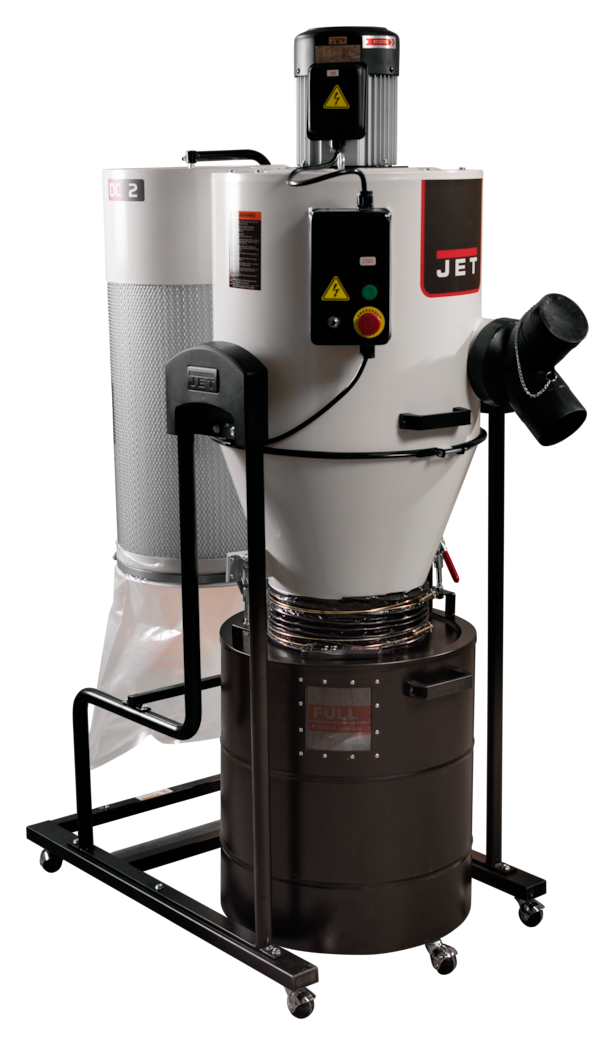

JET JCDC-2 Cyclone Dust Collector 2 HP 938 CFM 2-Micron Pleated Filter 230V 1Ph with Remote Control

The JET JCDC-2 Cyclone Dust Collector is a high-performance two-stage dust collection solution engineered by JET for demanding workshop environments. Powered by a 2 HP, 1-phase 230V motor, it delivers 938 CFM of airflow while capturing fine particles down to 1 micron and below, keeping your shop air clean and your workflow uninterrupted. Its cyclone separation technology provides more working CFM than comparable horsepower single-stage units, making it an exceptional upgrade for serious woodworkers and professionals who demand both power and precision.

Key Features

• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Double paddle manual cleaning system quickly cleans the pleated filter
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Swivel casters make it easy to move the unit around the shop
• Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units

Specifications

• MPN: JT9-717520
• Stock Number: 717520
• Motor Power (HP): 2
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Air Flow (CFM): 938
• Filter Efficiency (Micron): 1
• Efficiency (Micron): 1
• MERV Value: 13
• Collection Drum Capacity (gal.): 30
• 1-Hose Connection Diameter (In.): 6
• 2-Hoses Connection Diameter (In.): 4
• Canister Filter Length (In.): 22-5/8
• Footprint (L x W/In.): 50-5/8 x 25-7/8
• Impeller Material: Steel
• Max. Static Pressure (Wc.): 10.079
• Static Pressure Loss (EU Method) (Wc.): 3.780
• Static Pressure Loss (US Method) (Wc.): 2.520
• Prop 65: Cancer and Reproductive Harm
• Country of Origin: Taiwan

Frequently Asked Questions

How fine of a particle does the JCDC-2 filter capture?

The JCDC-2 uses a pleated canister filter rated at 1 micron efficiency with a MERV 13 rating, capturing even the smallest fine dust particles down to 1 micron and below to help maintain cleaner shop air.

How does the two-stage cyclone system improve performance over a single-stage unit?

In the two-stage system, heavy debris is pulled down to the 30 gallon collection drum before the debris stream ever reaches the filter. This keeps the filter cleaner longer, provides constant suction, and delivers more working CFM than comparable horsepower single-stage units.

How does the remote control work, and what timer options are available?

The included radio frequency remote control operates the unit from up to 50 feet away. The remote timer settings allow the system to run for 2, 4, 6, or 8 hours before automatic shutoff, giving you flexible, hands-free control over your dust collection schedule.

How do you empty the collection drum and clean the filter?

The 30 gallon collection drum features quick release levers and independent casters, making it easy to detach and roll away for quick emptying. The pleated filter is maintained using the double paddle manual cleaning system, which quickly cleans the filter without requiring removal.
